Combined screw squeezing press with crusher ViPress

Scope of application of the combined screw press with crusher

• Component part of mechanical sewage treatment equipment.
• Sewage treatment plants, sewage pumping stations.
• Enterprises of food, meat processing, chemical industry.

The main advantages of the screw squeezing press combined with a crusher

• operation in different modes - manual, automatic, remote control
• high-quality crushing of a wide variety of materials;
• saving money on waste transportation;
• preservation of organic compounds in wastewater, which contributes to the process of its further biological treatment;
• high-strength construction, resistant to wear and tear, able to work under high mechanical loads;
• quick inspection;
• minimal maintenance requirements.

Features and advantages of the combined screw press with crusher

• Closed construction with easy access to the operating mechanisms.
• Installation and synchronization with existing equipment.
• Availability of two sizes for different capacities.
• Rotation of the crusher shafts towards each other at different speeds to self-clean the cutters and create a tearing effect.
• Possibility of reversing to prevent jamming of the auger and cutters.
• Application of special high-strength steel inserts in the body of the press to resist abrasion by the auger.
• Manufacture of augers by special stretching and molding technology, which makes it possible to precisely maintain variable pitch in the auger squeezing zone and constant pitch in the conveying zone.
• High-precision to prevent auger runout during rotation.
• Depending on the customer's needs and characteristics of the waste - application/setting of different types of washing: irrigation of the cutters, the housing in the squeezing zone and the housing in the feed zone of the waste, washing out of organic substances.
• At the customer's request, the press is equipped with a mesh screen, which is installed at the bottom near the cutters. This mesh keeps the garbage in the shredding zone until it is broken down to particle sizes that can pass through the mesh openings. This option is used when there is a need to improve the quality of compaction and scum washing.
• In cases where the building footprint does not allow direct discharge of the squeezed waste directly into a container, the design allows for the construction of a discharge pipe up to 5 meters in length.
• For such situations, the squeeze discharge pipe is installed at an angle of 10° to 90° from the horizon line with a 90° rotation of the pipe in relation to the body.
• In case of industrial necessity it is possible to install the press on a telescopic stand.
• Possibility to install the press outside the working premises.

Ease of operation and maintenance of the screw press combined with a crusher

• The press does not require constant maintenance.
• Free access to the main components in working condition for inspection.
• Easy installation and operation: the presses are equipped with removable covers for service work.
• The presses can be hermetically sealed with other pieces of equipment.
• Reduction of maintenance staff and waste removal costs.

Long service life of the combined screw press with crusher

• The screws of the EKOTON presses are made of steel for strength and abrasion resistance. The standard thickness of the applied spiral turns is 8-10 mm, in the pressing zone the screw is reinforced with a 20 mm thick tip.
• Additional special anti-corrosion treatment: volume etching and passivation with special agents.
• Electrical protection against overload and power surges.

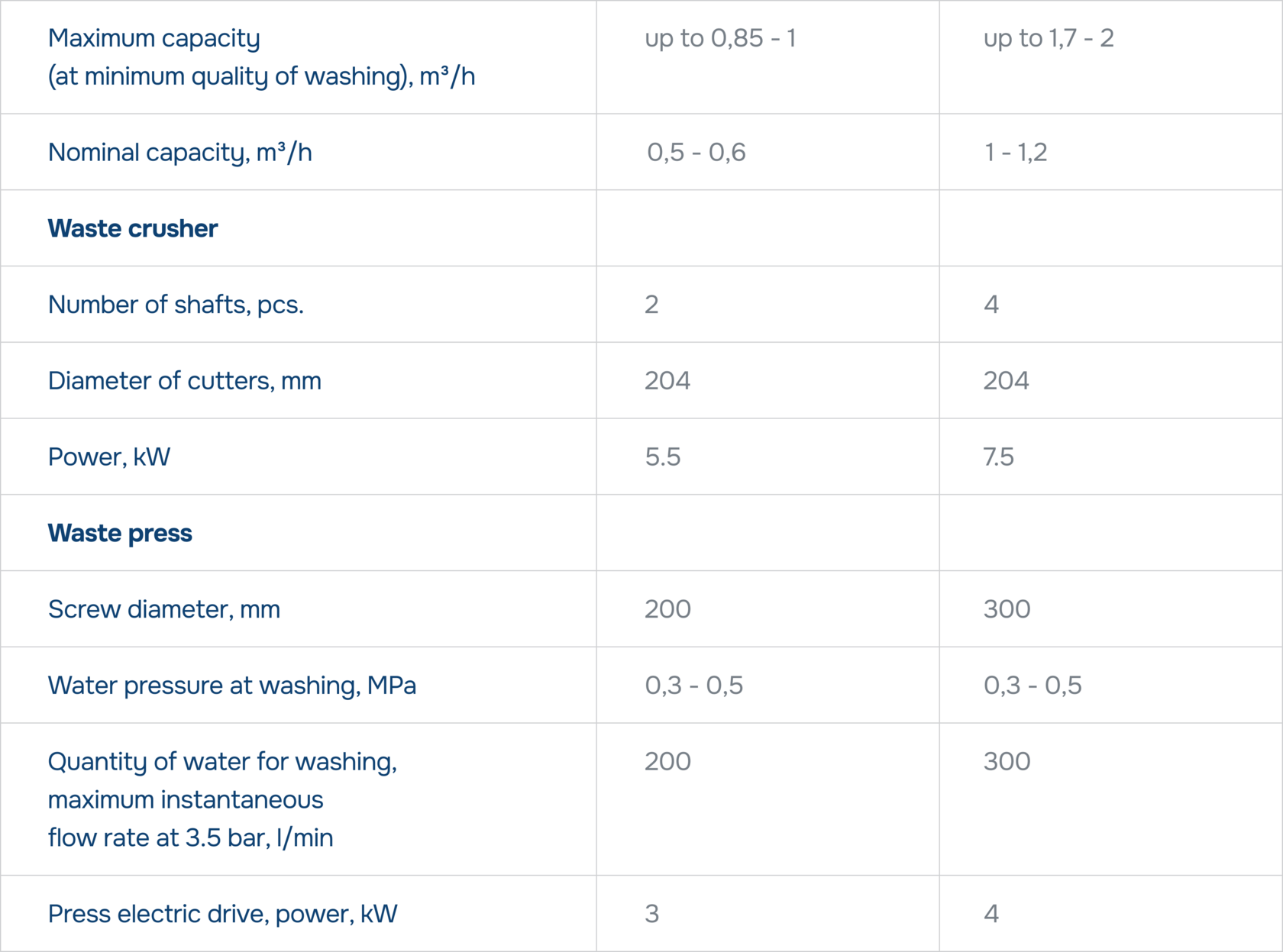

Technical characteristics of the Combined screw squeezing press
